Here is a question almost nobody asks before buying a helmet, and it changes which helmet you should buy: how many outer shells does this model come in?
A helmet listed from XS to 2XL has to fit heads that differ by several centimetres of circumference. There are two ways to do that. You can build one shell and change the thickness of the interior padding between sizes — thicker liner for a small head, thinner for a large one. Or you can tool several shells of increasing size and give each one its own EPS liner geometry, so the outer shell grows with the head and the padding stays roughly constant.
Both approaches pass certification. DOT FMVSS 218 and ECE 22.06 test finished helmets in specific sizes, so a single-shell helmet carrying either is a properly certified helmet. The difference is not legality. It is what you end up wearing.
What a single shell actually costs you
On a one-shell helmet the shell is sized for somewhere near the middle of the range. Everything else is the padding compensating.
If your head is small, you are wearing a helmet whose outer shell was designed for a bigger skull. It has a larger frontal area than your head needs, so it catches more air; it weighs what a shell for a larger head weighs, so your neck carries mass that is doing nothing; and it sits further off your scalp, with more padding in between. Riders describe this as the “mushroom” look, which is a cosmetic complaint standing in for a real physical one.
If your head is large, you get the thinnest comfort padding the model offers, because the shell has to accommodate you. Thin padding is where a loose fit comes from, and a loose helmet is the one failure mode that undoes every certification on the label — a helmet that can rotate independently of your scalp is not in position when it needs to be. If you are at the top of a size run, read how tight a helmet should be and check the fit against it rather than trusting the size label.
There is a certification edge case worth knowing too, and we have a live example. On the Scorpion EXO-R430, RevZilla’s listing states Snell M2025 for the helmet — and separately states that the 3XL/4XL shell is DOT-only. Larger shells are harder to pass, because the same impact energy has to be managed across a bigger, thinner structure. If you buy at the extreme end of a size run, read the certification line for your size and not the headline for the model.
What to look for, in order
One: get the head shape right first. This matters more than shell count and it is not close. A four-shell helmet in the wrong internal shape gives you a forehead pressure point or gaps at the temples, and no amount of shell scaling fixes it. Work out whether you are intermediate oval, long oval or round using our head shapes guide, and treat that as a filter before anything else.
Two: measure, then read the model’s own chart. Not a generic S/M/L. Our sizing guide covers the measurement; the point here is that a shell boundary often falls inside a letter size. On the Contour-X, for example, the four shells split XS / SM / MD-LG / XL-2XL — so a medium and a large share a shell, while a small gets its own. Two sizes on the same shell fit differently from two sizes on different shells, and that is why trying both is worth the trip.
Three: ask where you sit in the range. If you are a medium in a helmet sold S to XL, a single shell costs you very little — you are close to the size the shell was designed around. If you are an XS or a 2XL, shell count is one of the most valuable specs on the page.
Four: discount an unsized weight figure. See below.
Why this makes most published weights nearly useless
Helmet makers quote a weight for one sample and very often do not say which size it was. On a single-shell helmet that is forgivable, because the mass hardly moves across the range. On a four-shell helmet it makes the number close to meaningless: an XS and a 2XL of the same model are physically different objects.
The Arai Contour-X is the clean illustration. Its published figure, 3.34 lb, appears on two US retailer listings — and neither states a reference size, on a helmet with four shells. Arai Americas’ own product page for the model is a color picker with no spec sheet at all, which is why a retailer is the cited source. Compare that to the Klim Krios Pro, published at 1,450 g in size Large, with the size stated. One of those two numbers you can actually use.
This is why our lightest helmets ranking is careful about what it claims, and why every weight on this site carries the sourcing note that came with it rather than being presented as a precise figure.
Who publishes a shell count, and who does not
Across the helmets in our registry, a published shell count is the exception rather than the rule.

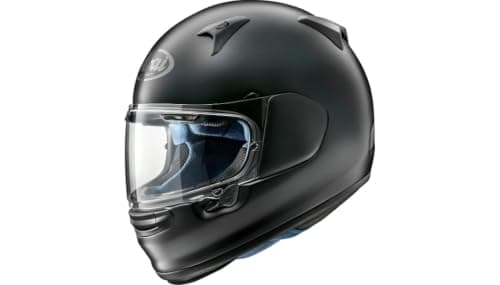

Arai publishes four on both street helmets we list, the Contour-X and the Regent-X, and treats it as a core design claim rather than a bullet point. Shoei publishes four for the Hornet X2 and four for the J-Cruise II, but for the RF-1400 describes the shell as being made in multiple sizes without giving a number — so that is what we record. Schuberth publishes two shells covering eight head sizes from 51 to 65 cm on the C5, which is an unusually transparent way to put it.
For most of the rest — including every budget helmet we rank — no shell count is published anywhere we could read it. That blank is the finding, not a gap in our research. A maker that tooled four shells has an expensive reason to tell you; silence usually means one or two.
We own none of these helmets and have fitted none of them to a real head. Here is exactly what we do instead. Every spec below is read from the manufacturer or retailer page named on each card, on the date recorded there, and prices come from the live layer with their own date stamp.
